E555 Standard Features

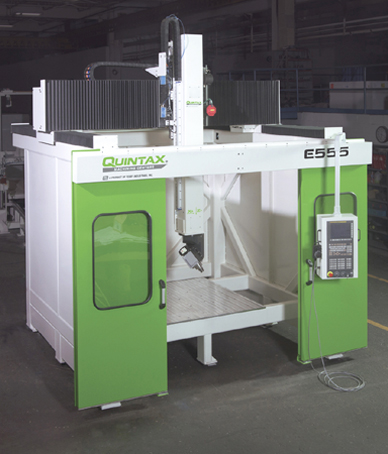

 Quintax E555 5-Axis CNC Router

The Quintax E5 Series Enclosed Gantry 5-axis machining centers offer exceptional value while providing features typically not found on 5-axis machines of this class. Modular construction allows for simple installation, and rigid design enables the machines to meet the most demanding light alloy, composites, and plastics applications requirements. The E5 Series is enclosed to ensure maximum operator safety in addition to enhanced noise and dust control. Each machine is engineered to provide consistent accuracy and unbeatable uptime as its prime objectives.



  • Single 5’ x 5’ table
  • 36” Z axis travel
  • 9.6 HP Liquid cooled spindle, 100% duty cycle. 20,000 RPM
  • Heavy Duty HSK 63F toolholding
  • 2,000 inches per minute X/Y rapid travel rates
  • 1,500 inches per minute Z rapid travel rate
  • Rack and pinion X/Y/Z drives
  • Enclosed for operator safety
  • Full 5 axis interpolated motion
  • Air conditioned electrical enclosure
  • Automatic machine lubrication system
  • Hand-Held Pendant
