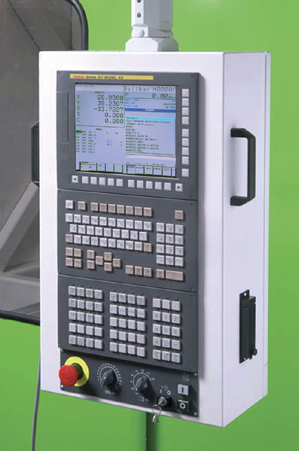

Fanuc 31iB CNC

Quintax Fanuc 31iB Control

In response to our customers’ needs Quintax can equip your machine with the most up to date CNC 5-Axis controls from Fagor or Fanuc. In addition to supplying the CNC control of your choice, Quintax provides 1 year free phone support for the control in addition to supplying spare parts such as servo-motors and drive modules. All Quintax CNC Control systems (power supply, servo drive & PLC) are housed in an air-conditioned cabinet to protect them from workplace conditions.

Standard Control

User Memory (RAM): 128Mb
 User Memory (Compact Flash): 40Gb
Block Processing Time: .25ms
Block Look Ahead: 1000 blocks
Communication protocol: Profibus-DP
Display: 10.4” color LCD
Programming Language: ISO G and M code
Connectivity: Ethernet TCP/IP (1), USB Port (2), PCMCIA (1)
PLC: Fanuc- Integrated
Servo-Motor Encoding: Absolute
Compensation: Volumetric, Bi-directional Leadscrew and Cross Compensation
Operating Language: English (11 optional languages)
Maximum no. of tools: 1,000
Handwheel: Fanuc multifunction
