Liquid Cooled Spindles

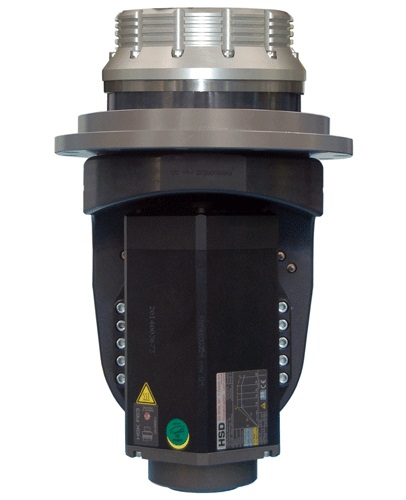

HSD HS 300D Liquid Cooled Spindle

HSD HS-300D

  • 11.7 HP/8.7 kW
  • Liquid cooled
  • 20,000 RPM
  • HSK 63 Toolholding
  • Cartridge style spindle
  • A- and C-axis harmonic drives
  • Incremental encoded torque motors
  • C-axis rotation +/-220°
  • A-axis rotation +/-120°

HSD HS-450 Liquid Cooled Spindle

    HSD HS-450

    • 13.4 HP/10 kW
    • Liquid cooled
    • 22,000 RPM
    • HSK 63 Toolholding
    • Cartridge style spindle
    • A- and C-axis harmonic drives
    • Incremental encoded torque motors
    • C-axis rotation +/-213°
    • A-axis rotation +/-120°

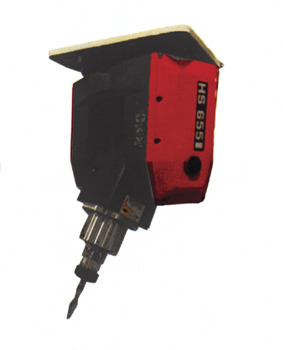

    HSD HS-655 Liquid Cooled Spindle

      HSD HS-655

      • Double Gimble
      • 20 HP/15 kW
      • Liquid cooled
      • 18,000 RPM, 24,000 RPM Optional
      • HSK 63F or HSK 63A Toolholding
      • Cartridge style spindle
      • A- and C-axis harmonic drives
      • Incremental encoded torque motors
      • C-axis rotation +/-245°, Continuous C Optional
      • A-axis rotation +/-120°

        • SPINDLE OPTIONS

          • Axis feedback
          • Spindle encoder
          • Axis brakes
          • Continuous C-axis slip-ring
          • Up to 40HP (30kW) spindle power
          • Optional B and C Axis Brake (Select Models Only)
          • Optional Rotary Encoders (Select Models Only)
