Quintax 3-Axis Q3612 Standard Features

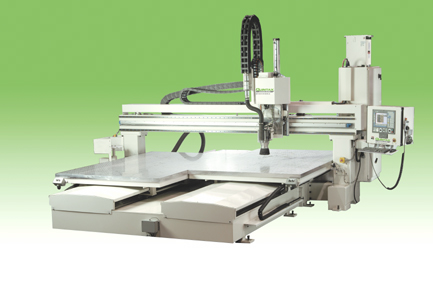

Quintax 3-Axis CNC Router Q3612

Quintax 3 axis machining centers are ideal for precise high-speed cutting, trimming and sheet stack routing of plastic, aluminum, composite materials, wood and foam. Ball screw driven, digitally controlled and rugged enough to provide years of service, Quintax 3 axis machining centers have proven themselves in aerospace, thermoforming, model/ pattern making and aluminum mold manufacturing. Available in a broad range of table sizes and Z axis strokes, let Quintax meet your next 3-axis production machine requirement.

  • Double 6’ x 12’ table
  • 36" Standard and up to 48” Z-axis travel available
  • 16 HP Fan cooled spindle, 24,000 RPM
  • Heavy Duty HSK 63F toolholding
  • 2,500 inches per minute X/Y rapid travel rates
  • 1,750 inches per minute Z rapid travel rate
  • Precision ball screw X/Y/Z drives
  • Air conditioned electrical enclosure
  • Automatic machine lubrication system
  • Hand-Held Pendant
