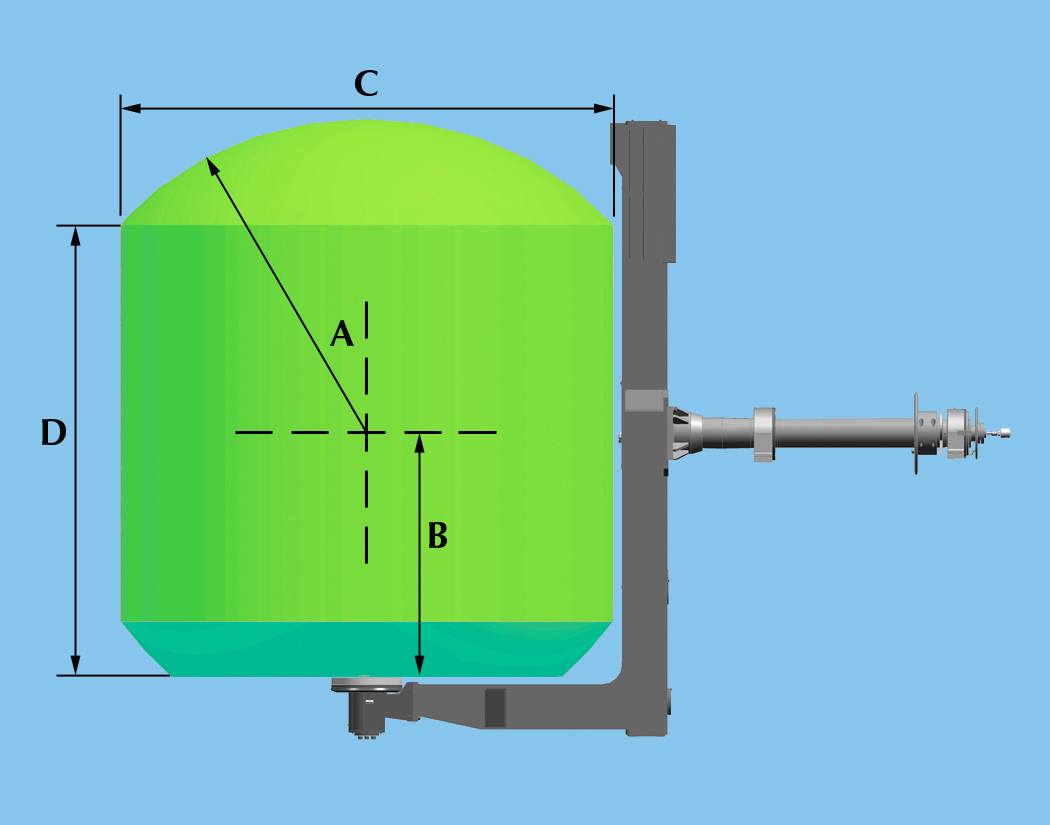

| L-Shaped Offset Arm | A | B | C | D | Weight Capacity | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Shuttle Models | Inch | mm | Inch | mm | Inch | mm | Inch | mm | lbs. | kg. |
| M-2600 | 51 | 1295 | 31.7 | 805 | 76 | 1930 | 65.7 | 1669 | 2200 | 1000 |
| M-3000 | 60 | 1524 | 43.6 | 1107 | 102 | 2591 | 75 | 1905 | 3000 | 1365 |
| M-3700 | 72.5 | 1842 | 57 | 1448 | 113 | 2870 | 102 | 2591 | 3000 | 1365 |
| M-4600 | 90.5 | 2299 | 71 | 1803 | 143 | 3632 | 128 | 3251 | 4000 | 1820 |
| M-5500 | 109 | 2769 | 69.4 | 1763 | 165 | 4191 | 140.7 | 3574 | 6000 | 2730 |
