Independent Arm Machines
Ferry Industries, Inc., pioneered the four-arm, five-station independent-arm carousel machine for the rotational molding industry. RotoSpeed independent-arm machines (with each arm on a separate cart) provide a multiple-station arrangement for heating, cooling, and servicing. Each cart indexes about a center pivot post and shares a common load-bearing track.

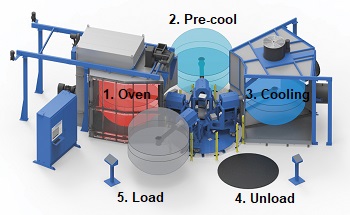

The floor plan provides five process stations:
- Oven
- Pre-cool or Intermediate
- Cooling
- Unload
- Load
These machines can be purchased with only one arm/cart. Up to three more may be added without mechanical modifications to the existing machine. Double ovens or double cooling stations are available initially or can be added later due to the modular layout of the RotoSpeed independent-arm concept. Custom design for these machines is available.
| Models Available: |
17 |
| Number of Arms: |
1 – 4 |
| Swing Ranges: |
55" – 239" (1,400 – 6,000 mm) |
| Weight Capacities: |
1,000 – 12,000 lb (454 – 5,460 kg) per arm |
Ferry RotoSpeed Independent-Arm Center Section Overhead View, 3-arm/carts shown.
Ferry RotoSpeed RS1600 Independent-Arm Machine

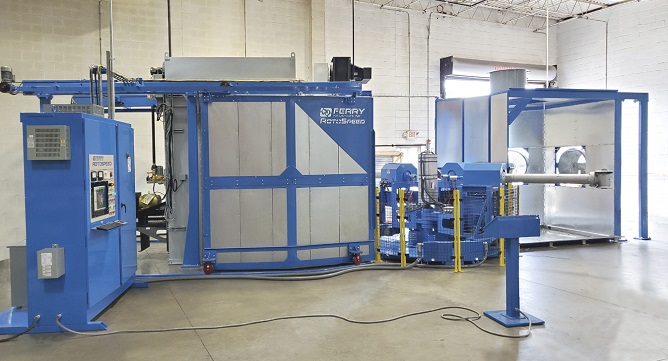

Ferry RotoSpeed RS2600 Independent-Arm Machine

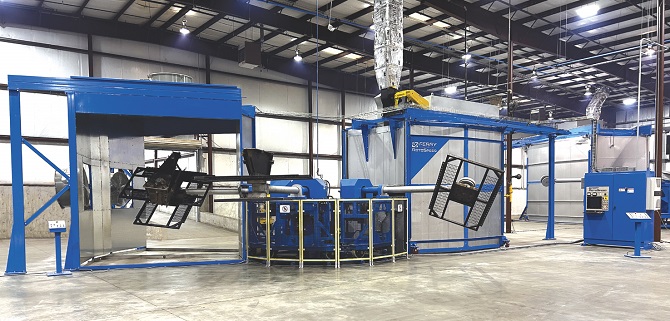

Ferry RotoSpeed RS3300 Independent-Arm Machine

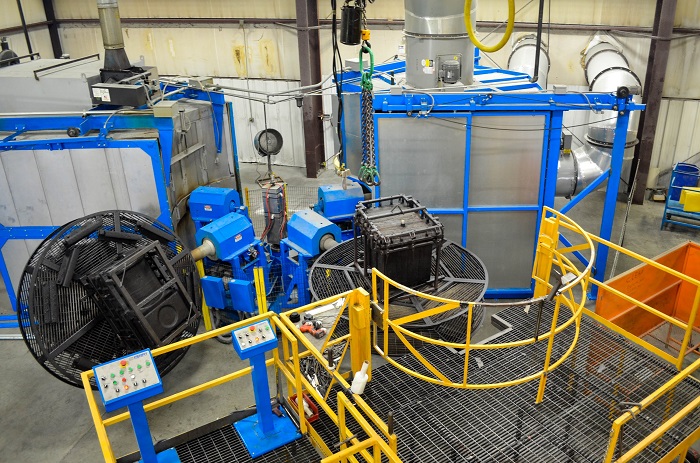

Ferry RotoSpeed RS4-3300 Independent-Arm Machine with Operator Platform

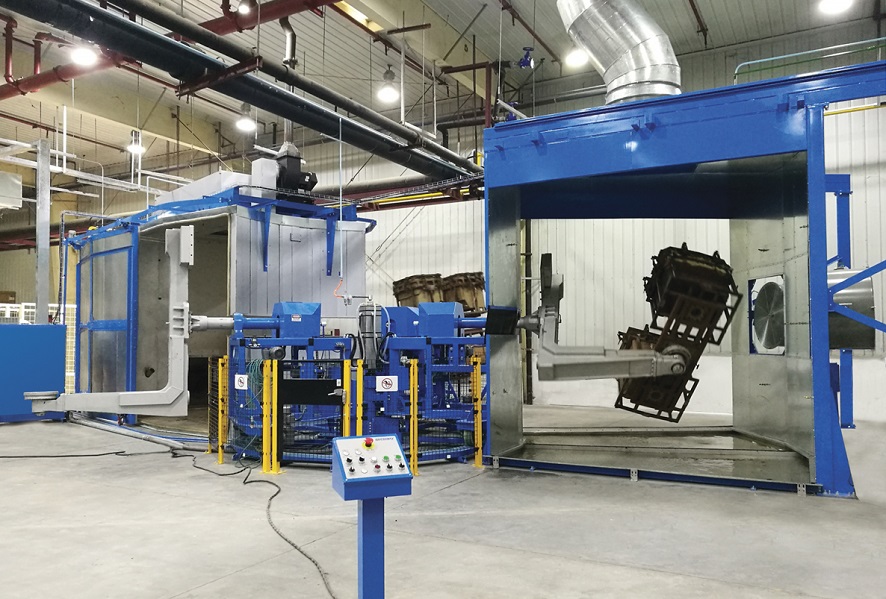

Ferry RotoSpeed RS3-3300 with Offset Arms

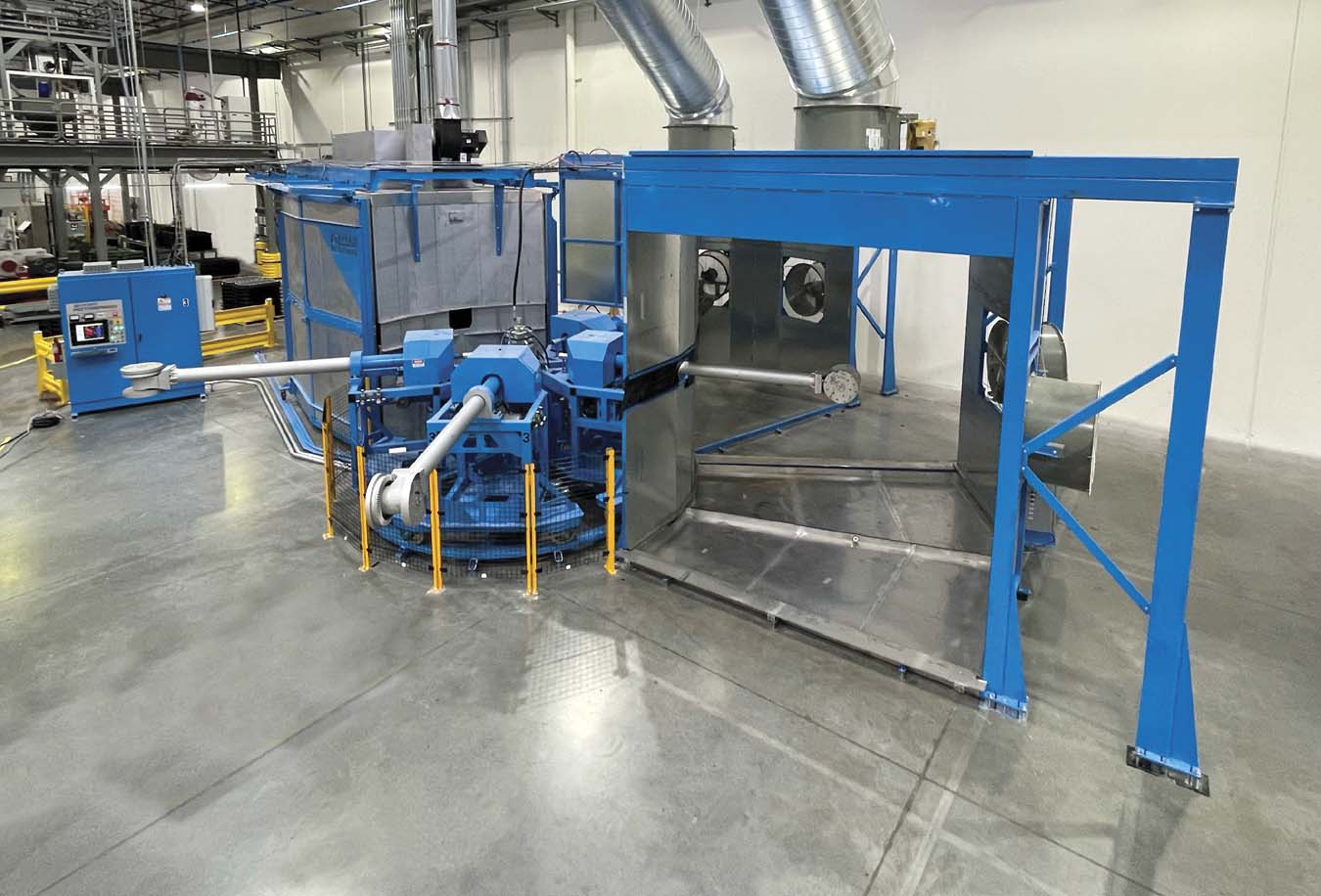

Ferry RotoSpeed RS4-3300 with Twin Coolers

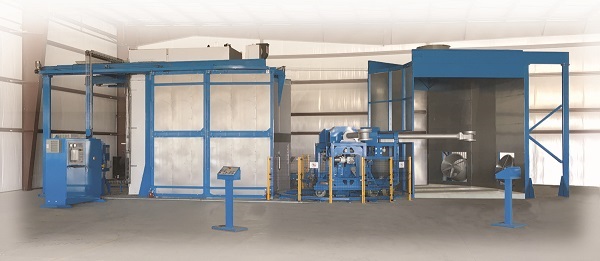

Ferry RotoSpeed RS2-3700

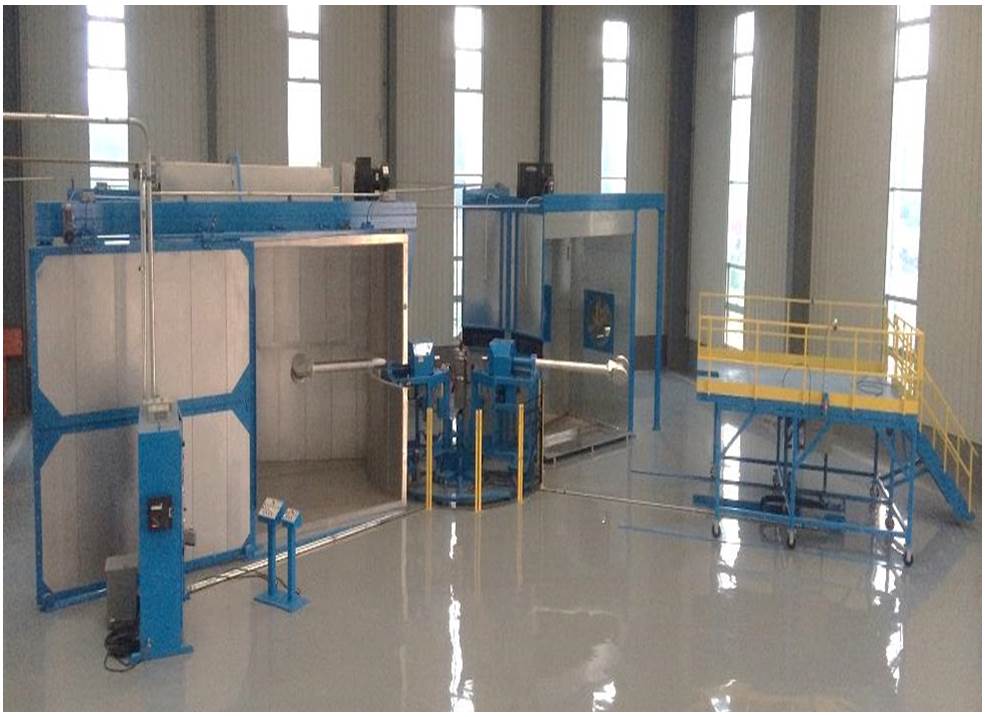

Ferry RotoSpeed RS2-3700 With Operator Platform

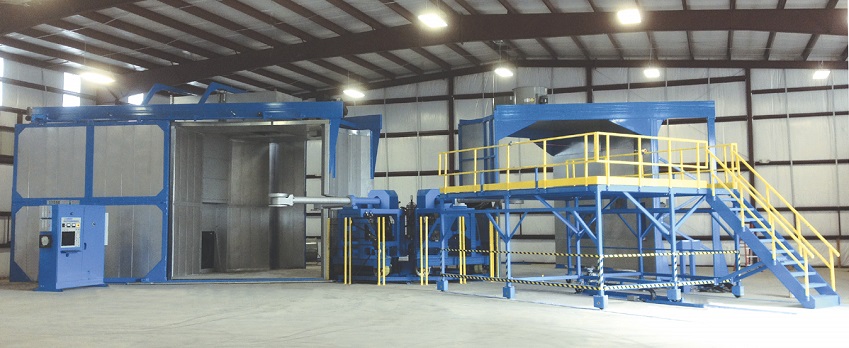

Ferry RotoSpeed RS3-4600 with Platform

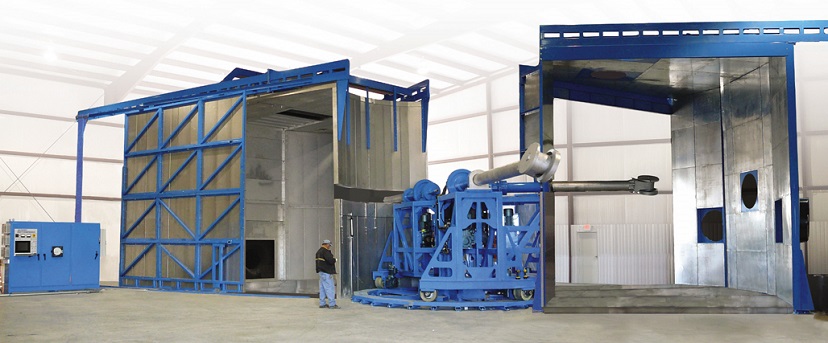

Ferry RotoSpeed RS3-6000 (under construction)
