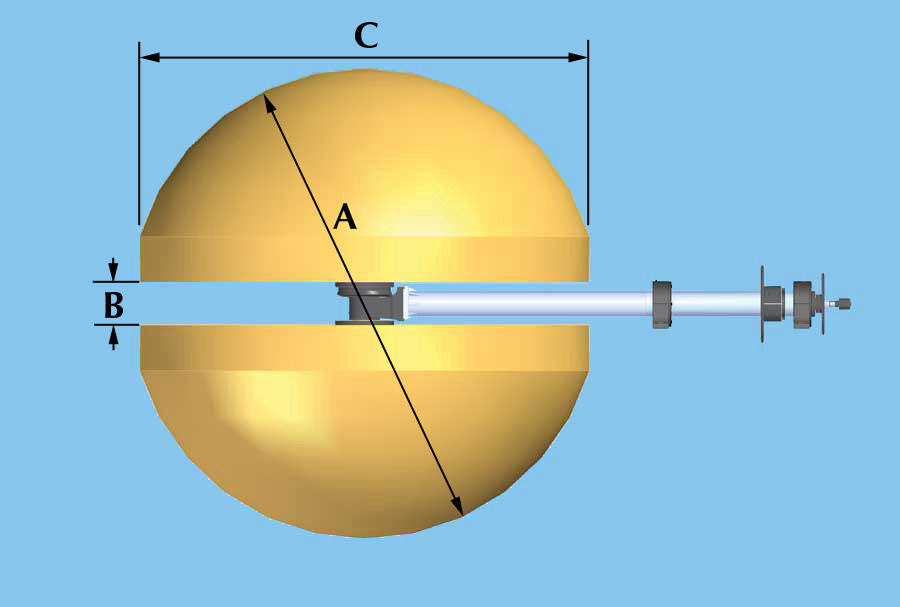

| Straight Arm | A | B | C | Weight Capacity | ||||
|---|---|---|---|---|---|---|---|---|
| Carousel Models | Inch | mm | Inch | mm | Inch | mm | lbs. | kg. |
| RS-1400 | 55 | 1397 | 5.5 | 140 | 50 | 1270 | 1000 | 450 |
| RS-1600 | 64 | 1626 | 8.5 | 216 | 63 | 1600 | 1500 | 680 |
| RS-1900 | 75 | 1905 | 11 | 279 | 74 | 1880 | 1500 | 680 |
| RS-2200 | 88 | 2235 | 11 | 279 | 78 | 1981 | 2200 | 998 |
| RS-2600 | 102 | 2591 | 11 | 279 | 92 | 2337 | 3000 | 1365 |
| RS-3000 | 120 | 3048 | 11 | 279 | 120 | 3048 | 4000 | 1820 |
| RS-3000 HD | 120 | 3048 | 14 | 356 | 120 | 3048 | 6000 | 2730 |
| RS-3300 | 131 | 3327 | 11 | 279 | 131 | 3327 | 4000 | 1820 |
| RS-3300 HD | 131 | 3327 | 14 | 356 | 131 | 3327 | 6000 | 2730 |
| RS-3700 | 145 | 3683 | 11 | 279 | 131 | 3327 | 4000 | 1820 |
| RS-3700 HD | 145 | 3683 | 14 | 356 | 131 | 3327 | 6000 | 2730 |
| RS-4000 | 160 | 4064 | 14 | 356 | 159 | 4039 | 6000 | 2730 |
| RS-4600 | 181 | 4597 | 14 | 356 | 175 | 4450 | 6000 | 2730 |
| RS-4600 HD | 181 | 4597 | 14 | 356 | 175 | 4450 | 8000 | 3640 |
| RS-4600 SHD | 181 | 4597 | 18 | 457 | 175 | 4450 | 10000 | 4540 |
| RS-5000 | 200 | 5080 | 18 | 457 | 185 | 4699 | 10000 | 4540 |
| RS-5500 | 218 | 5537 | 18 | 457 | 209 | 5309 | 10000 | 4540 |
| RS-6000 | 239 | 6071 | 18 | 457 | 209 | 5309 | 10000 | 4540 |
